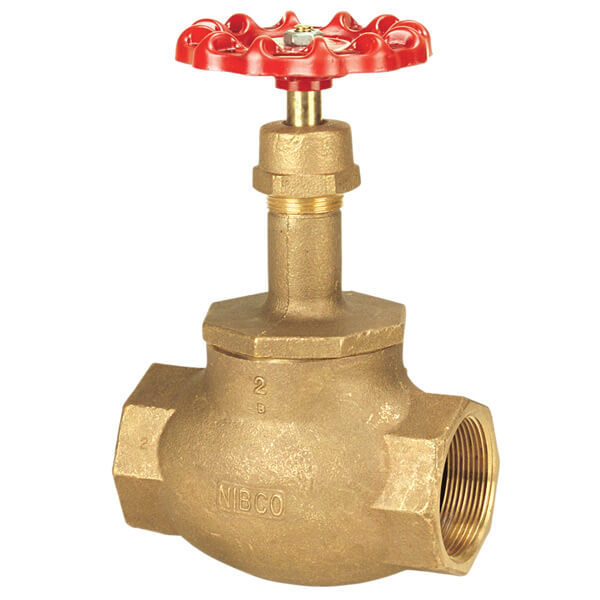

Globe Valve

CMEC Valves manufactures Globe Valves that ar primarily accustomed stop, begin and regulate fluid flow in pipelines. Globe Valves will shut off fluid flows by moving the disc against the flow stream. These valves ar significantly common in on-off services, however is used for varied applications. CMEC Aqua Valves manufactures globe valves in an exceedingly type of materials, together with iron, chrome steel, solid steel and bronze. designs embody corrosion resistant, pressure seal and refrigerant globe valves. For questions about our Globe Valve offerings and their capabilities, please contact CMEC Aqua Valves today!

The cut-off valve, additionally called the cut-off valve, could be a forced-to-close valve, thus once the valve is closed, pressure should be applied to the valve to force the waterproofing surface to not leak. once the medium enters the valve from below the valve flap, the resistance to be overcome by the operational force is that the friction between the stem and therefore the packing and therefore the thrust generated by the pressure of the medium. The force of the closing valve is bigger than the force of the gap valve, that the valve stem The diameter ought to be massive, otherwise there'll be stem bending failure.

According to the affiliation is split into 3 types: projection affiliation, screw affiliation, fastening affiliation. From the looks of the self-sealing valve, the media flow direction of the stop valve is modified into the valve cavity from higher than the valve flap. At this point, underneath the pressure of the medium, the force of closing the valve is little, and therefore the force of gap the valve is massive, and therefore the diameter of the valve stem is corresponding. Reduce. At an equivalent time, this sort of valve is additionally tighter underneath the influence of the medium. China's valve "three to give" has stipulated that the flow direction of the world valve shall be adopted from prime to bottom. once the stop valve is opened, the gap height of the disc is twenty fifth to half-hour of the nominal diameter. The flow has reached the utmost, indicating that the valve has reached the totally open position. Therefore, the totally open position of the stop valve ought to be determined by the stroke of the disc.

According to the channel mode is divided into four categories :
1) Straight-through stop valve
2) DC kind stop valve: within the direct or Y kind globe valve, the flow channel of the valve body is in an exceedingly diagonal line with the most flow channel, that the injury degree of the flow state is smaller than the traditional stop valve, that the pressure loss through the valve is additionally corresponding. It's small.
3) Angle kind cut-off valve: within the angle cut
American customary Bellows Stop Valve ZDAJ41W stainless-steel Valve Body
In the check valve, the fluid solely has to modification direction once, in order that the pressure drop through this valve is smaller than that of the traditional structure.
4) Piston stop valve: this sort of globe valve could be a variant of a traditional globe valve. during this valve, the flap and seat square measure typically designed supported the plunger principle. The valve flap is ground to attach the plunger to the valve stem, and therefore the seal is achieved by 2 elastic seals that square measure placed on the plunger. the 2 elastomeric seals square measure separated by a collar and therefore the seal round the plunger is secured by the load applied by the bonnet nut to the valve cap. Elastic seals is replaced and may be made of a good kind of materials. This valve is principally used for "open" or "closed", however it's equipped with a special sort of plunger or special collar, which might even be accustomed regulate the flow .

After assembling, tested by water at a pressure no less than 0.6 Mpa, no leakage.'>
