Bronze Flanged Globe Valves with Bolted Bonnet drilled PN10/16

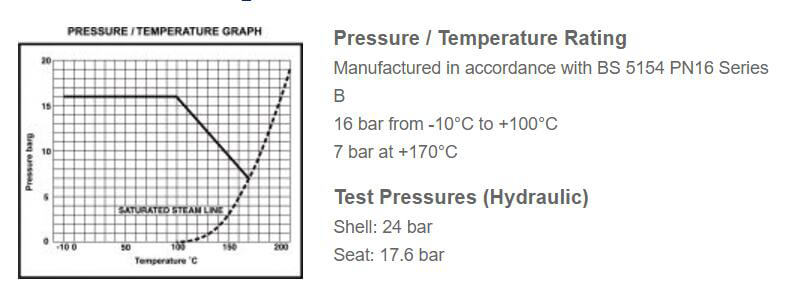

Nominal Pressure PN16
Operating Temperature -10 to +150deg C
Conforming to:
BS21 / NPT Threading
BS EN 1092 / PN16 – Flange drilling
Class ANSI 150

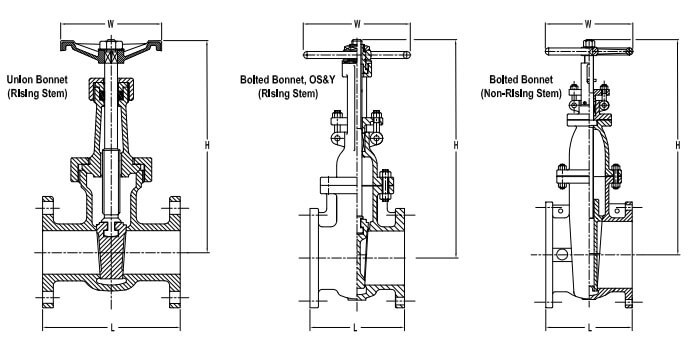

Types: Rising Stem ,Non Rising Stem

Quantity:

Share this:

Inquire Add To Basket

Model: CMECFV3
Brand: AQUA-MIGEN
Code: 8481804090

Product Description

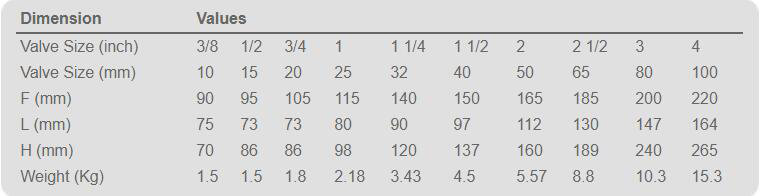

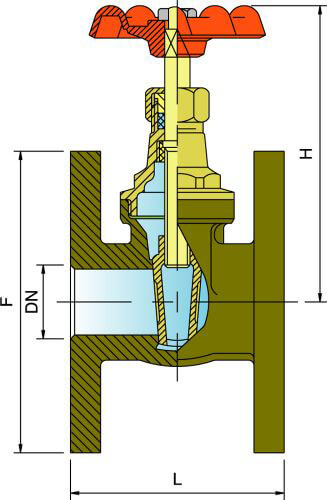

Dimensions & Weights
Material

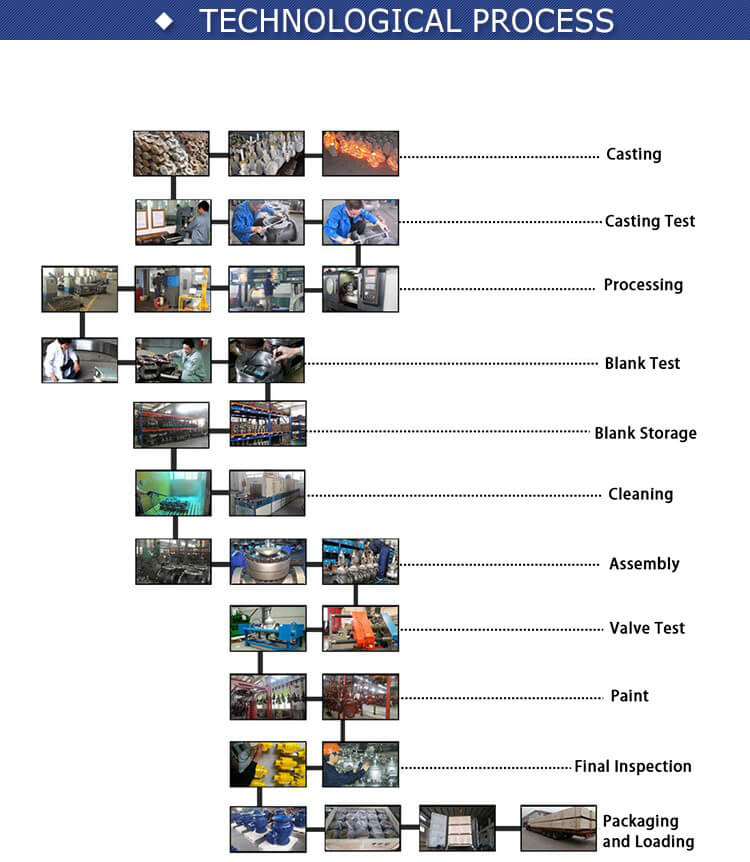

TECHNOLOGICAL PROCESS
OUR COMPANY

Bronze Flanged Globe Valves with Bolted Bonnet drilled PN10/16Manufactured in accordance to the highest standards meeting all requirements and accordingly suitable for a wide range of applications.

Commonly available in DZR brass, Bronze, Cast Iron and other materials also to suit your needs.

Generally used in sectors such as heating, air-conditioning, water, sanitary systems, oil pipelines, gasoline networks, saturated steam and generally with any non-corrosive liquid.

175 psi/12.1 bar non-shock water working pressure (WWP), Non-rising stem, Solid wedge, Screw-in bonnet, Class 125 threaded female end x ANFH hose thread with cap and chain,


 Part Material BS ASTM

AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.
