1.Materials:
2.Screw: brass
3.Handle: ABS
4.Stem: brass
5.Stem O-ring: NBR
6.Bonnet: brass
7.Filter: stainless steel
8.Ball: brass
9.Seat ring: teflon
10.Body: brass
11.Rosette: stainless steel
12.Pipe thread: ISO228/1:2000
13.Nominal pressure: 0.6MPa
14.Suitable mediums: water and steam
15.Polished and chrome finish
16.Working temperature: 0 to =100
| Body Material | Solid Brass (Cu>59%,Pb<1.8%,Fe<0.3%),high Cu,low Pb. |
| Handle Material | Metal |
| Size | 1'' |
| Surface Treatment | Chrome plated |
| Plating | Ni:8-10um,Cr:0.2-0.3um |

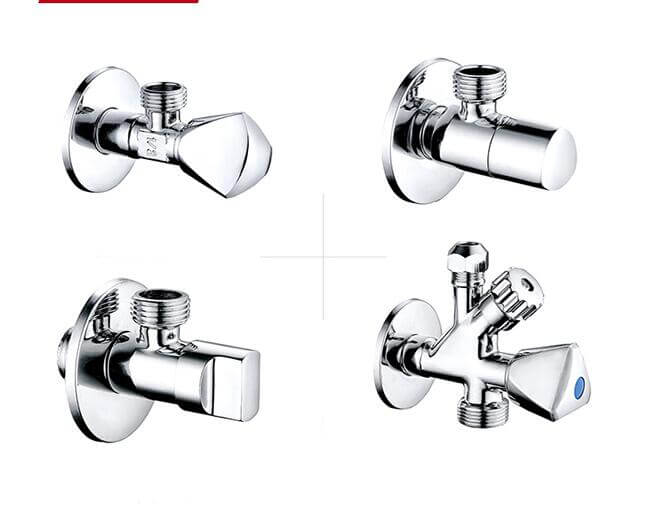

Zinc and Brass angle valve
1) Chrome plated finish
2) ISO228 thread
3) OEM service
1. Nominal pressure:1.0MPa
2. Working temperature:-10~110°C
3. ISO228 thread screw
4. Size:1/2"*3/8" or 1/2" or 3/4"
1. 100% pieces leaking tight test before shipment;
2. Forged brass body, nickel plated;
3. Most produced item, sample always available;
4. 22 years of design & manufacturing experience, 15 years of exporting experience, well-equipped Test & Inpsection laboratory.
In our own CNAS laboratory, we normally do the
1. life test
2. Dimension
3. Apprearance testing
4. Leakage testing
If you have some specific test we also can do it for you.
1/ Rapid response:
Any of your questions will be answered within 24 hours.
2/ Quality Control:
All products must through double checks during every manufacturing process.
Test reports are available for each delivery.
3/ Guarantee:
Requirement of customers & quality of products will be full guaranteed.
Every defective product during the transportation can be compensated in the next order.
4/ Samples:
Samples are available. The samples shipment charge will be paid by your side
