Steam Radiator Angle Valve, 3/4 in

Finish :N/A
Material :Brozen
Product type :Brozen
Weight :1.1
Height :3.19
width:2.56

Quantity:

Share this:

Inquire Add To Basket

Model: CMECAV4
Brand: AQUA-MIGEN
Code: 8481804090

Product Description
Parts & Material
Working Pressure
FAQ

Steam Radiator Angle Valve, 3/4 in
Product Features:

Constructed of bronze ensuring durability and dependability
Covered under ProFlo's 1 year limited warranty
High quality finish – will resist rust and corrosion through everyday use
Width: 2-9/16"
Height: 3-3/16"
Connection Size: 3/4"
Connection Type: FIP x MIP
125 psi/8.6 bar saturated steam to 353°F/178°C, 200 psi/13.8 bar non-shock cold working pressure, Class 125 threaded end connections, Integral seat, Screw-in bonnet, Renewable seat disc PTFE, Threaded end connections

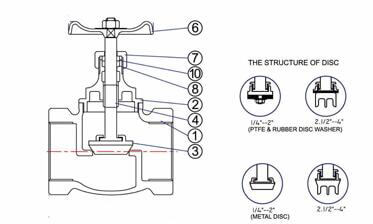

1 Body: Cast Bronze

2.Bonnet: 1/4'' ---1/2'' Brass 3/4''--2'' Cast Bronze

3.Disc: 1/4''---1'' Brass 1-1/4'' ----2'' Cast Bronze

4.Stem: Brass

6.Hand Wheel: Cast Iron

7.Packing Nut: Brass

8.Gland Packing: PTFE

10.Gland: 2''-4'' Brass

3R Seat Ring(option): 1/4''--2'' N.B.R.

3F: 1/4''---4'' PTFE

Working Pressure (Non Shock) Test Pressure

Staurated Steam: 150

Cold water,Oil,Gas: 300

Shell: 450

Seat: 80

1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
