1.Materials:
2.Screw: brass
3.Handle: ABS
4.Stem: brass
5.Stem O-ring: NBR
6.Bonnet: brass
7.Filter: stainless steel
8.Ball: brass
9.Seat ring: teflon
10.Body: brass
11.Rosette: stainless steel
12.Pipe thread: ISO228/1:2000
13.Nominal pressure: 0.6MPa
14.Suitable mediums: water and steam
15.Polished and chrome finish
16.Working temperature: 0 to =100
Description
Exposed wall faucet for opening and closing water flow through a pipe, e.g. for a washing machine ,bathroom or connected tube.The angle valves will have mirror effect After polished treatment.

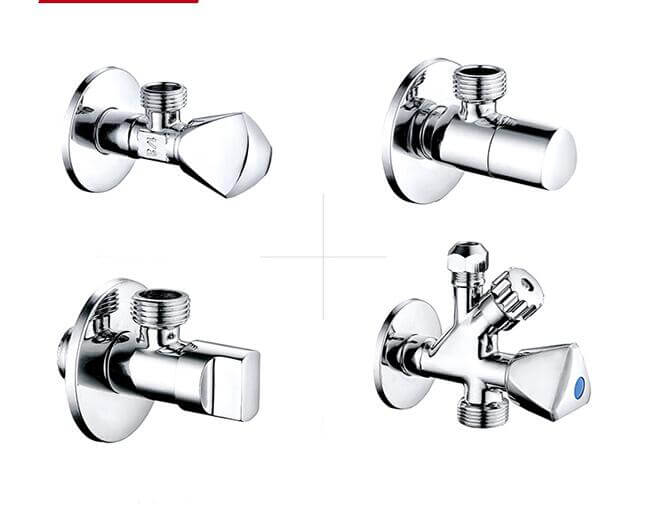

Bathroom Brass Polished Angle Valves
Body Material | Solid Brass (Cu>59%,Pb<1.8%,Fe<0.3%),high Cu,low Pb. |
Handle Material | Metal |
Size | 2-1/2'' |
Surface Treatment | Chrome plated |
Plating | Ni:8-10um,Cr:0.2-0.3um |
1. Nominal pressure:1.0MPa
2. Working temperature:-10~110°C
3. ISO228 thread screw
4. Size:1/2"*3/8" or 1/2" or 3/4"
1. 100% pieces leaking tight test before shipment;
2. Forged brass body, nickel plated;
3. Most produced item, sample always available;
4. 22 years of design & manufacturing experience, 15 years of exporting experience, well-equipped Test & Inpsection laboratory.
In our own CNAS laboratory, we normally do the
1. life test
2. Dimension
3. Apprearance testing
4. Leakage testing
If you have some specific test we also can do it for you.

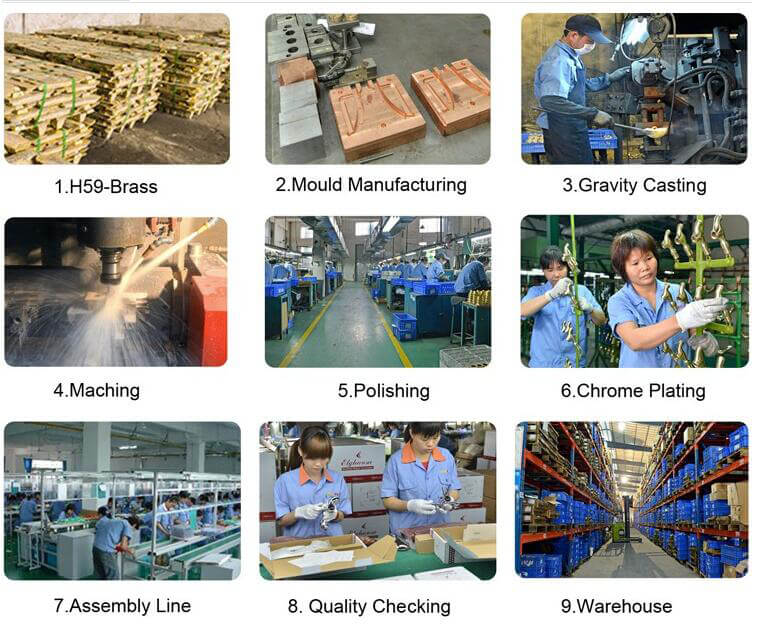

1:The production follow the valve standard strictly. Toyota Lean Production line used by AQUA-MIGEN aim to improve the quality.
We test each piece valve during the production, quality control in forge, machine, assemble and all the process in order to guarantee the quality.
2:AQUA-MIGEN replace automatic machine to most old type of machine so as to make the products best
3：Automatic forging machine
Constant temperature
100% Anneal
1/ Rapid response:
Any of your questions will be answered within 24 hours.
2/ Quality Control:
All products must through double checks during every manufacturing process.
Test reports are available for each delivery.
3/ Guarantee:
Requirement of customers & quality of products will be full guaranteed.
Every defective product during the transportation can be compensated in the next order.
4/ Samples:
Samples are available. The samples shipment charge will be paid by your side
