Industrial Use Stainless Steel Swing Check Valve

Industrial Use Stainless Steel Swing Check Valve

Designation - Material
Body - SS 316/ CF8M
Bonnet - SS 316 (CF8M)
Disc - SS 316 (CF8M)
Hanger Pin - SS 304
Plug - SS 304
Plug Gasket - PTFE
Gasket - PTFE

Quantity:

Share this:

Inquire Add To Basket

Model: CMECSC1
Brand: AQUA-MIGEN
Code: 8481804090

Product Description
Product Details

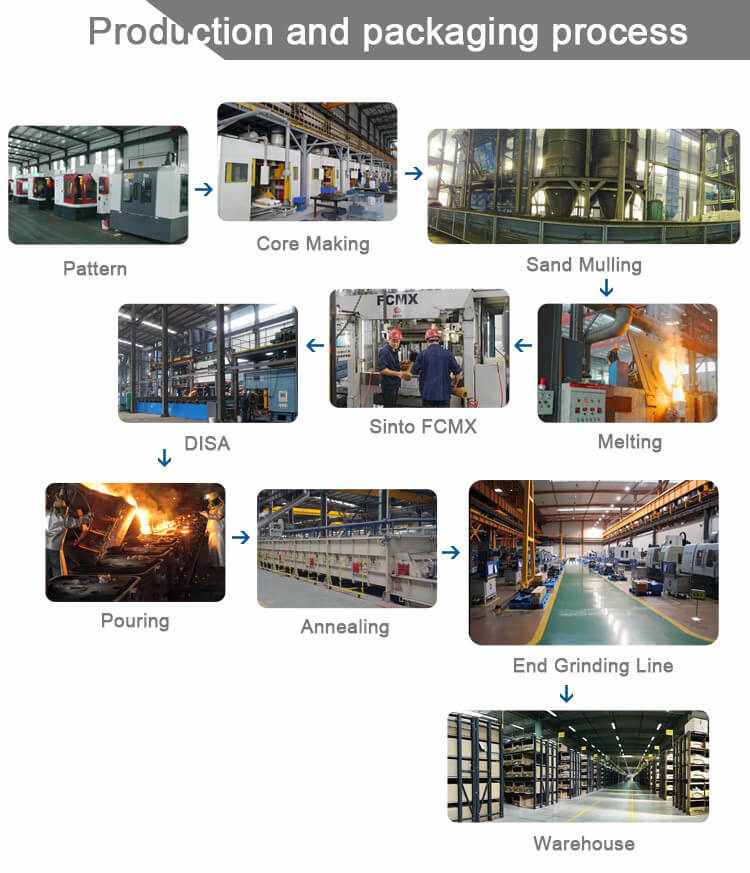

Producting and packing
Our Company
WHY CHOOSE US

Stainless Steel Swing Check Valves (also known as tilt disc valves) are great for backflow prevention. A disc suspended at the top of the valve allows water to flow only one way with minimal force (1/2 lb. cracking pressure), while blocking attempts to flow in the opposite direction.

The DuraChoice line of stainless steel swing check valves is made of stainless steel 316 and has a working pressure of 200 PSI.

SS 316 investment casting body

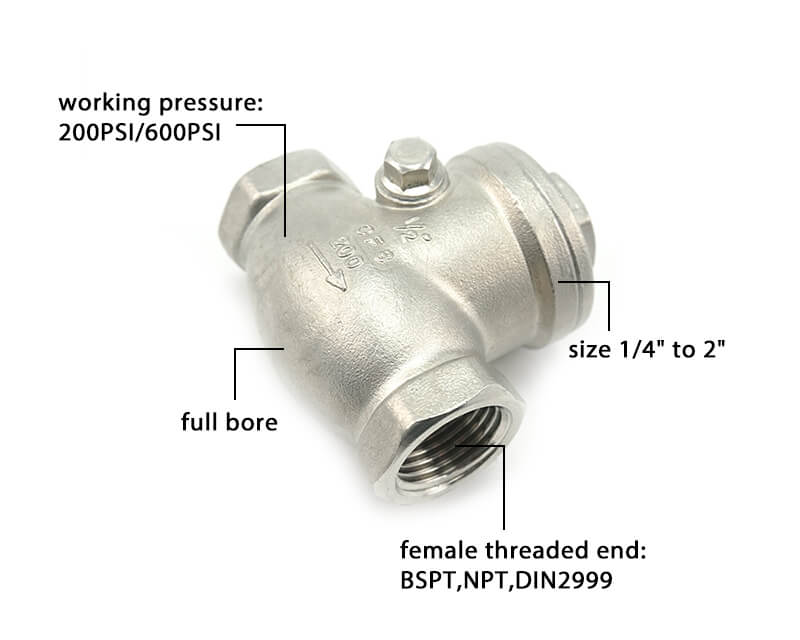

Working pressure of 200 PSI
Suitable for full range of liquids and gas (WOG)
Temperature range: -40°F to 400°F
100% individually tested
NPT threaded ends to ANSI B1.20.1

STAINLESS STEEL 316 SWING CHECK VALVE - 200 PSI (WOG)

AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.
