Industrial 1" 4 Inch Brass Gate Valve 3 Inch With BS

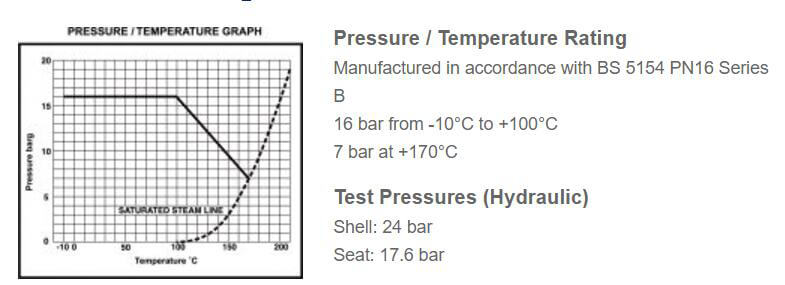

Nominal Pressure PN16
Operating Temperature -10 to +150deg C
Conforming to:
BS21 / NPT Threading
BS EN 1092 / PN16 – Flange drilling
Class ANSI 150

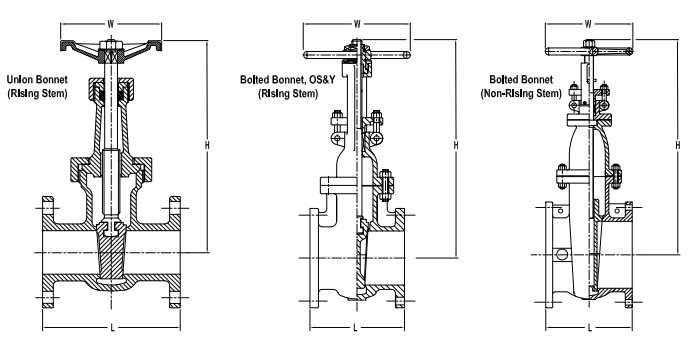

Types: Rising Stem ,Non Rising Stem

Quantity:

Share this:

Inquire Add To Basket

Model: CMECFV6
Brand: AQUA-MIGEN
Code: 8481804090

Product Description

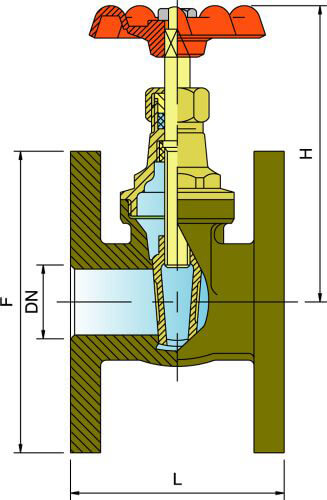

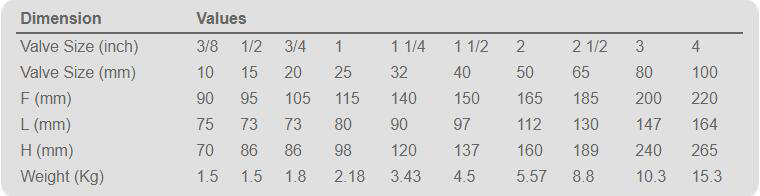

Dimensions & Weights
Material

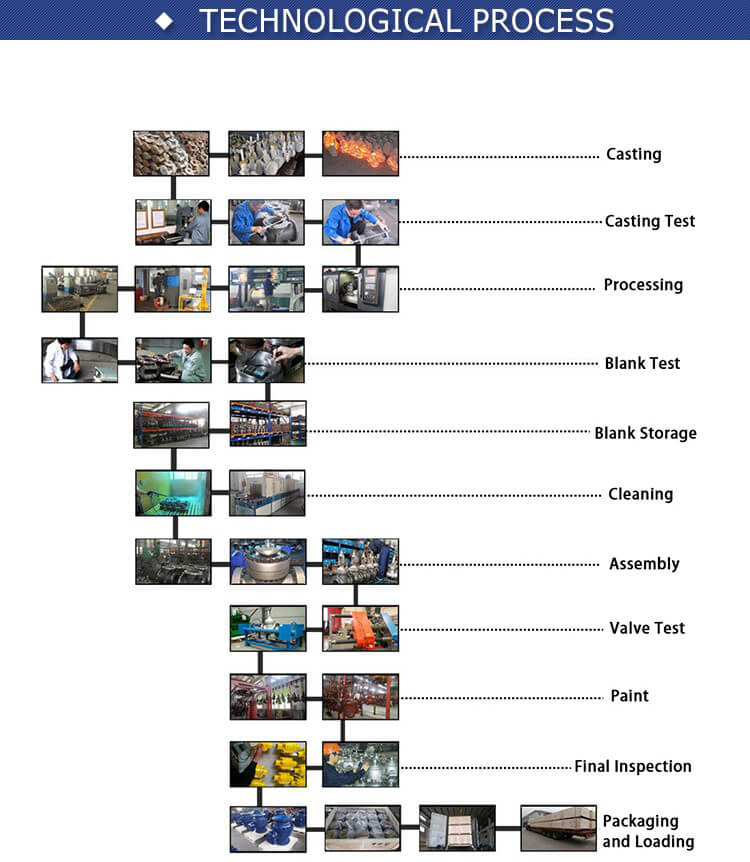

TECHNOLOGICAL PROCESS
OUR COMPANY

DescriptionIndustrial 1" 4 Inch Brass Gate Valve 3 Inch With BS Bronze Gate Valves for use in commercial and industrial applications. Typical services include; hot and cold water, HVAC, steam, compressed air, gas and other general utility services.

Nominal Pressure PN16

Operating Temperature -10 to +150deg C

Conforming to:

BS21 / NPT Threading

BS EN 1092 / PN16 – Flange drilling

Class ANSI 150

Types: Rising Stem ,Non Rising Stem


 Part Material BS ASTM

AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.
