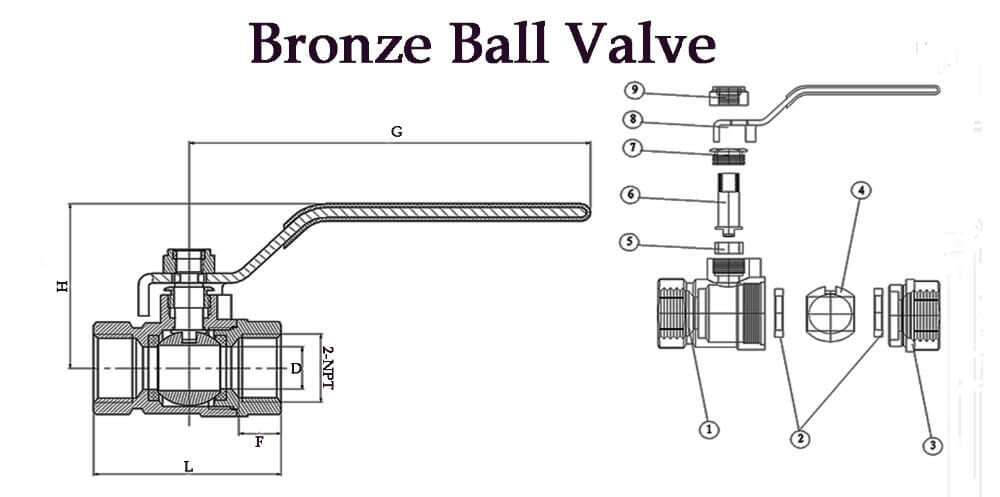

Bronze ball valve
Specification:
1.pressure: 150LB 200LB 300LB
2.Media: sea water, oil, liquefied gas,steam
3.Temperature: water below 120 degree C, oil ,gas ,steam below 220 degree C
4.Tread connection Std: (G ,Rc ,RP) BSP, BSPT ,NPT
Description
Bronze ball valves for use in commercial and light industrial applications. Typical services include; hot and cold domestic water, HVAC, low pressure steam, compressed air, LP gas, natural gas.
Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure, Maximum service temperature 250°F, Two-piece body, Full port, Silicon bronze stem, Reinforced PTFE seat rings, Press x press female end connections, Press leak-detection feature, Multiple handle options,Full Port, 600 WOG
Bronze Ball Valves, 2 Piece, Full Port, 600 WOG
Two Piece Quarter-Turn Bronze Ball Valves
1.CONNECTION TYPE: FXF
2.COMMON BRASS MATERIAL Hpb57-3
3.IRON NUT
4.SURFACE TREATMENT:SAND-BLASTING AND NATURE COLOR IN BODY&THREAD
5.BRAND:AQUA-MIGEN OR OEM
6.THREAD:G BSP NTP
7.HANDLE:IRON HANDLE THROME PLATED ANY COLOR WITH PVC COVER
8.INSET BALL:BRASS
9 PTFE SEATED
10STEM:BRASS
11.FULL PORT
12.PN:16
13.PACKING:PTFE
14.BRASS GLAND NUT ,O-RING
15.long thread
