1.Great quality Full Port Brass Ball Valves great for OEM projects, the valves are rated at 600 PSI (water, oil and gas).
2.These full port valves are strong enough for many applications. Their full port design allows unrestricted flow to reduce cavitation and pressure drop.
Description
Great quality Full Port Brass Ball Valves great for OEM projects, the valves are rated at 600 PSI (water, oil and gas). These full port valves are strong enough for many applications. Their full port design allows unrestricted flow to reduce cavitation and pressure drop. Two-piece body, Full port, PTFE Disc Holder, Iron / Aluminium Handle, PVC handle cover handle. We can design size and model to customer requirement.
Feature
Working pressure of 400 psi; 150 Saturated Steam
Chrome-plated brass ball
Working temperature: -4°F to 300°F
Suitable for full range of liquids and gas (WOG)
Fast 1/4 turn open or closed operation
Flow can go in either direction
Each valve individually tested
Blowout-proof stem
NPT Threaded ends to ANSI B1.20.1
| Description | Material |
| Body | Brass |
| Ball | Chrome-plated brass |
| Stem | PTFE |
| Gaskets | PTFE |
| Handle | Plated Steel |
| Handle Cover | Rubber |
Detail
| Product Name | Brass Ball Valve |
| Connection Thread | NPT. BSP. BSPT |
| Surface | Nature Color / Chrome-plated / Nickel-plated |
| Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Material | Brass |
| Field of Application | Water, Oil etc |
| Working Pressure | 16Bar/ 232Psi |
| Guarantee Time | 10 Years |
| Work Temperature | -20°C to 120°C |
| Service | 7*24 Hours |
| Insurance | $10 Million |
| Package | Standard export package or Customized |
| Payment | L/C,D/P,T/T,Western Union,Credit Card |
| Delivery | Ningbo Port,28 days after payment |
| Connection End | Female Thread |
| Handle Color | Red |
| Valve guarantee | 10000 Times 10 Years |
| Function | Kitchen, Home, Commercial, Garden and General |
The Production follow the valve standrad strictly ;
Toyota lean Production line used by Aqua aim to improve the quality ;

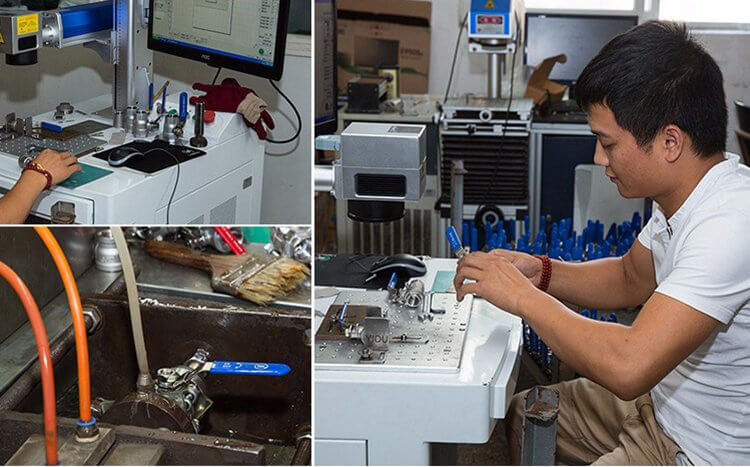

We test each piece valve during the production ,quality control in forge ,machine ,assemble and all the process in order to guarantee the quality;
Automactic Forging machine
Constant temperature
100% Anneal
We replace automatic machine to most old type of machine so as to make the products better;
1.Is it in stock?
Pls contact us and it according to your detail products model
2.Can you speed up delivery?
If ou produce line is not very busy we can speed up delivery for you
3.Can you supply the sample ?
We can supply the sample if we have stock
4.Do you have agent ?
We haven't agent ,but we have sales central in Spain and Germany
5.Can we to be your agent ?
It according to your purchase qty per year

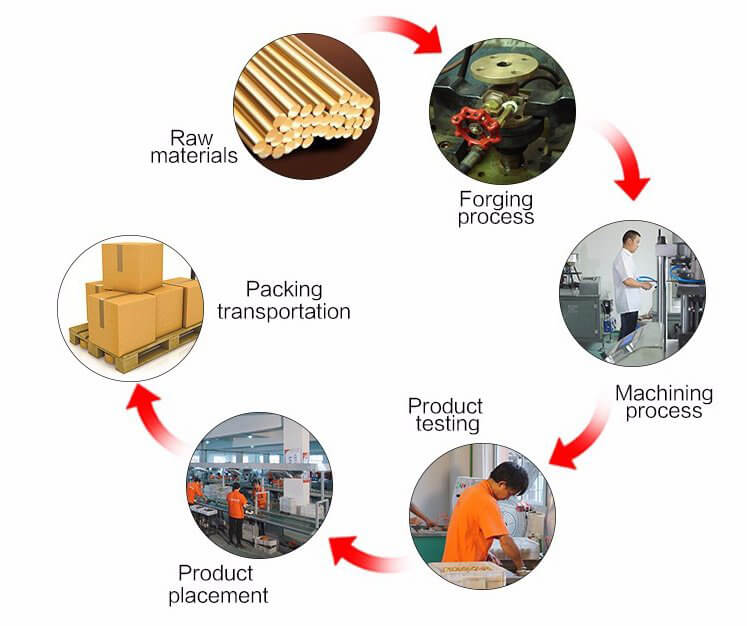

6.The produce process
Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
