Bronze ball valve
Specification:
For control or air, water, oil and gas in hose or pipe lines.
-Rated to 600 PSI WOG; 150 PSI WSP.
-Forged brass bodies.
-Blow-out proof stems.
-PTFE seats, seals and thrust washers.
-Chrome plated brass balls and plated steel handles.
-Max temp 366ºF.
-NSF61 Approved.
Product Description
Description
Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
Full port
Chrome-plated brass ball and stem
Blowout-proof stem
Standard lever handle
Threaded end connections
Use in U.S. drinking water applications is prohibited
FM Approved (1/4" - 2)
UL Listed (threaded 1/4" to 4")
Size range 1/4" to 4"
Feature
Working pressure of 400 psi; 150 Saturated Steam
Chrome-plated brass ball
Working temperature: -4°F to 300°F
Suitable for full range of liquids and gas (WOG)
Fast 1/4 turn open or closed operation
Flow can go in either direction
Each valve individually tested
Blowout-proof stem
NPT Threaded ends to ANSI B1.20.1
Detail

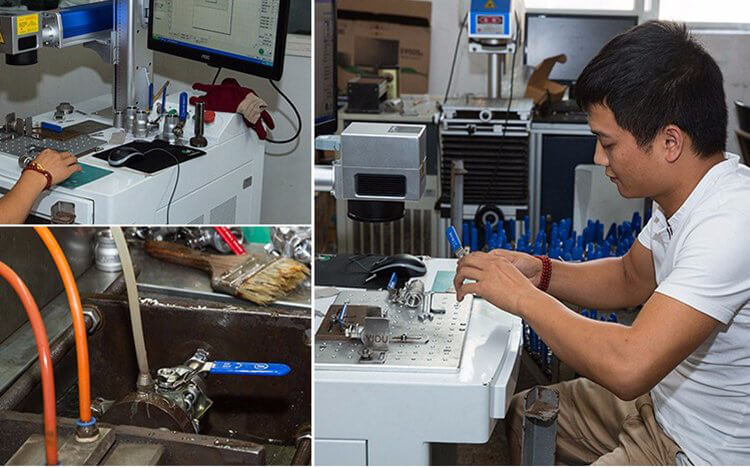

Quality Control
The Production follow the valve standrad strictly ;
Toyota lean Production line used by Aqua aim to improve the quality ;
We test each piece valve during the production ,quality control in forge ,machine ,assemble and all the process in order to guarantee the quality;
Forge Process
Automactic Forging machine
Constant temperature
100% Anneal
We replace automatic machine to most old type of machine so as to make the products better;

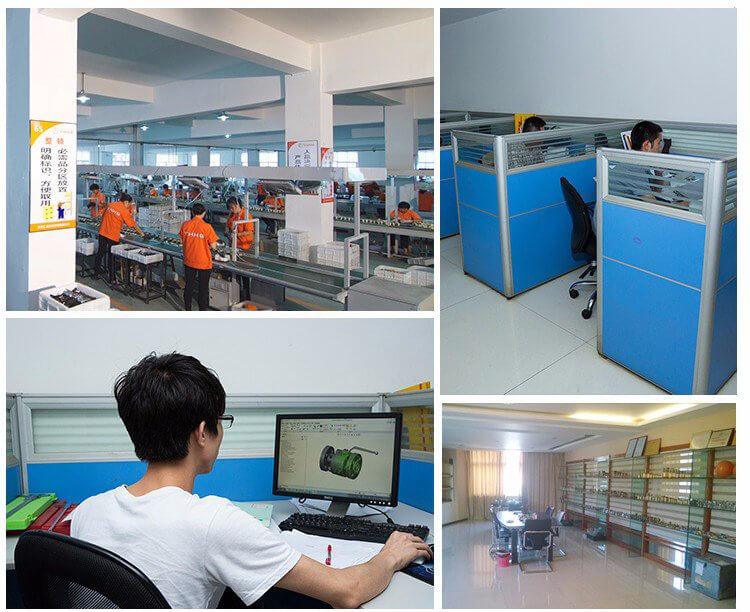

Company profile
FAQ
1.Is it in stock?
Pls contact us and it according to your detail products model
2.Can you speed up delivery?
If ou produce line is not very busy we can speed up delivery for you
3.Can you supply the sample ?
We can supply the sample if we have stock
4.Do you have agent ?
We haven't agent ,but we have sales central in Spain and Germany
5.Can we to be your agent ?
It according to your purchase qty per year

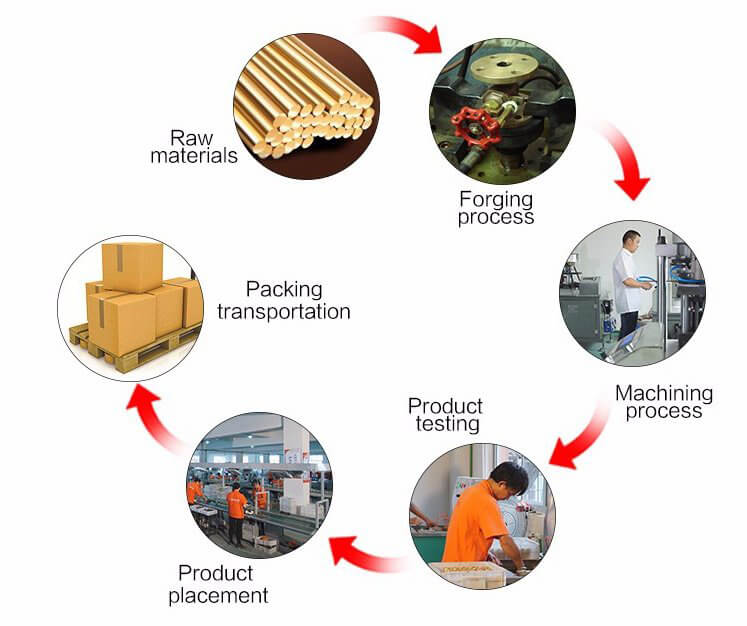

6.The produce process
Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
