3PC Flanged Ball Valve With Mouting Pad (DIN)

3PC Flanged Ball Valve With Mouting Pad (DIN)

3PC Flanged Ball Valve With Mouting Pad (DIN)
3PC Flanged Ball Valve With ISO5211 Mouting Pad (DIN)
Material：304, 316, 1.4308, 1.4408
Model：3PC
Connetion：Thread, Flange
Medium：Water, Oil, Gas

Quantity:

Share this:

Inquire Add To Basket

Model: CMECSS3
Brand: AQUA-MIGEN
Code: 8481804090

Product Description

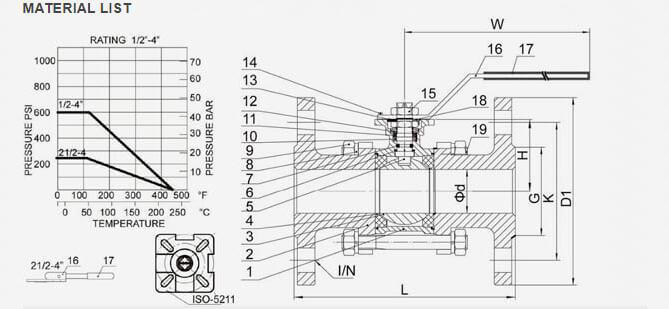

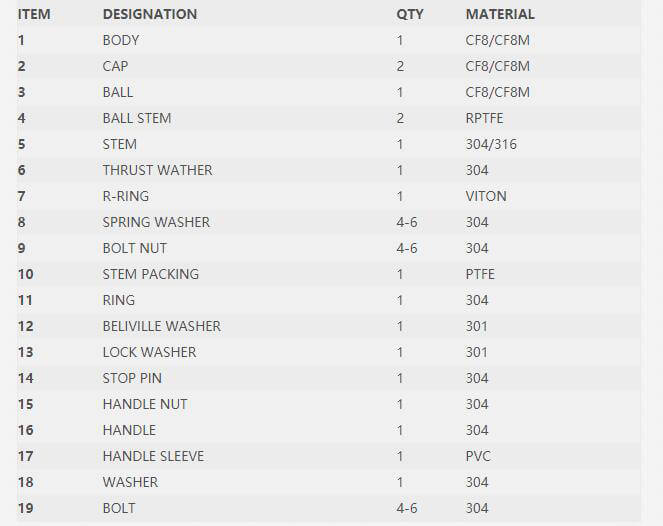

MATERIAL LIST

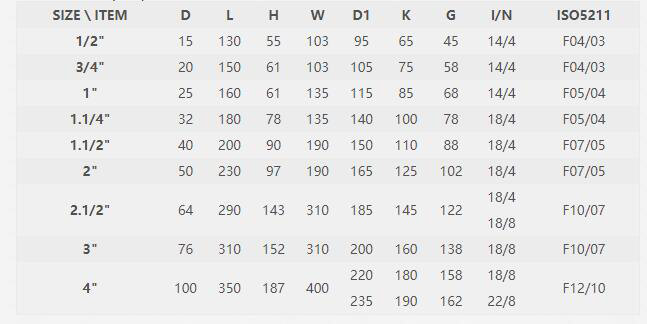

DIMENSIONS (mm)
FAQ

 3PC Flanged Ball Valve With Mouting Pad (DIN)-QF30

 FEATURES

 PN16-40 Full Port

 Investment Casting Blow-out-Proof Stem

 PED97/23/PE(CE0036) Approved Anti-Static device (option)

 Design:DIN3357,EN12516 Face to Feace:DIN3202-F4(DN15-100)

 End Flange:DIN2501,PN10-40 Inspection Testing:DIN3230/3,EN12266

1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–Delivery
