2PC Flanged Ball Valve With Directing Mounting Pad

2PC Flanged Ball Valve With Directing Mounting Pad

2PC ANSI Flanged Ball Valve With ISO5211 Mounting Pad
Material：304, 316, CF8, CF8M, WCB
Model：2PC, ISO5211 mounting pad
Connetion：Flange
Medium：Water, Oil, Gas

Quantity:

Share this:

Inquire Add To Basket

Model: CMECSS2
Brand: AQUA-MIGEN
Code: 8481804090

Product Description

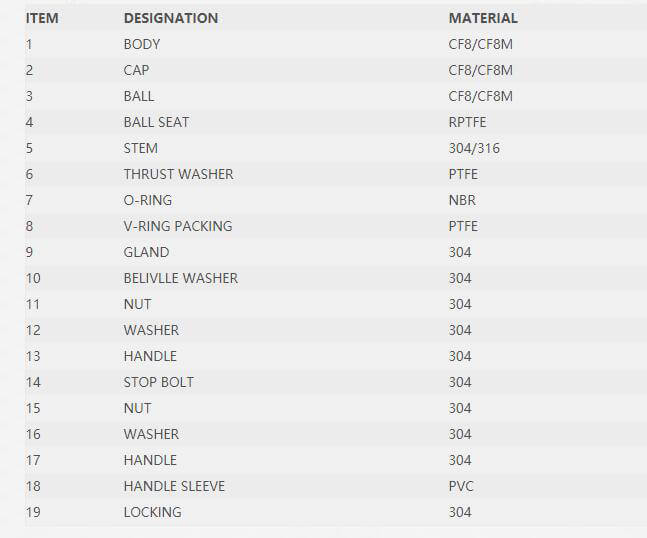

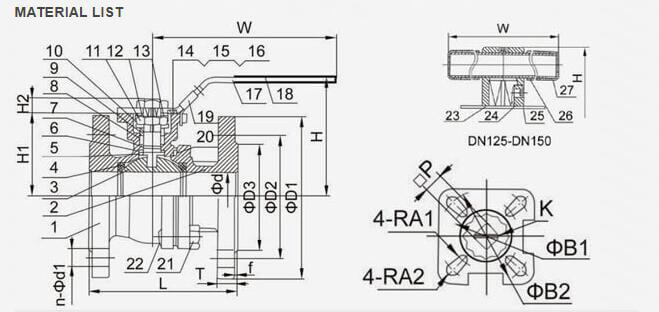

MATERIAL LIST

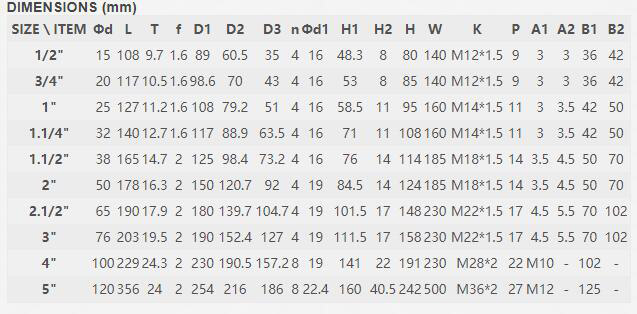

DIMENSIONS (mm)
FAQ

 2PC Flanged Ball Valve With Directing Mounting Pad FEATURES

 ANSI CLASS5 150 Full Port

 Investment Casting Blow-out-Proof Stem

 PED97/23/PE(CE0036) Approved ISO5211 Mounting Pad

 Anti-Static device (option) Design: ASME B16.34

 End Flange:ASME B16.5 Inspection Testing:AP1598

1.Is it in stock

Pls contact us and it according to your detail products model

2.Can you speed up delivery?

If ou produce line is not very busy we can speed up delivery for you

3.Can you supply the sample ?

We can supply the sample if we have stock

4.Do you have agent ?

We haven't agent ,but we have sales central in Spain and Germany

5.Can we to be your agent ?

It according to your purchase qty per year

6.The produce process

Inquire—offer—Invoice—drawing confirm—mass production—SGS Test report confirm–DeliveryFAQ
