2 Piece, Full Port, Male x Female Threaded Connection, 600 WOG Bronze Ball Valves

Bronze ball valve
Specification:
1.pressure: 150LB 200LB 300LB
2.Media: sea water, oil, liquefied gas,steam
3.Temperature: water below 120 degree C, oil ,gas ,steam below 220 degree C
4.Tread connection Std: (G ,Rc ,RP) BSP, BSPT ,NPT

Quantity:

Share this:

Inquire Add To Basket

Model: CMECBV6
Brand: AQUA-MIGEN
Code: 8481804090

Product Description

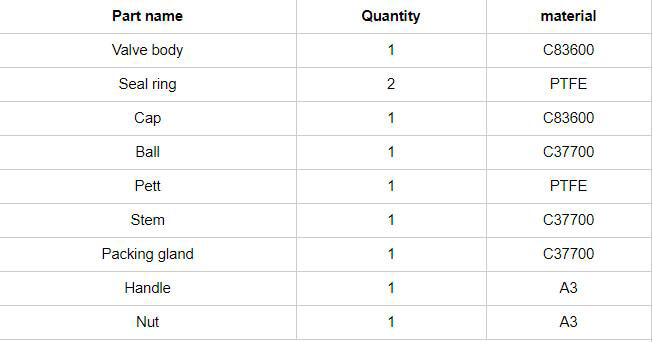

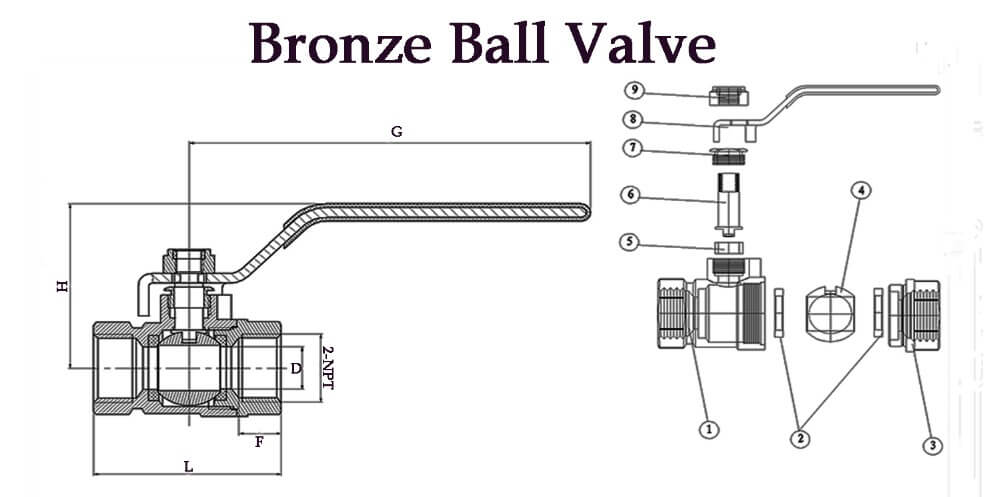

Main Dimension
Our company
SPECIFICATION

Description
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

We supply this model is 2 Piece, Full Port, Male x Female Threaded Connection, 600 WOG Bronze Ball Valves with yellow handle

 Two Piece Quarter-Turn Bronze Ball Valves Specification

 1.Nominal Pressure: 150LB,200LB,300LB

 2.Suitable medium: sea water,oil,gas

 3.Suitable temperature: -20℃≤ T ≤170℃

 4.Thread: (G,Rc,RP)BSP,BSPT,NPT


AQUA MIGEN is located the YuHuan which the hometown of civil ball valve. The AQUA MIGEN is formed by China Machinery Engineering SuZhou Co.,Ltd. The technical engineer 31 person and executive staff 33 person. The major business is produce, Research and Development ball valve. Companies continue to adhere to the pursuit of technological innovation to improve quality as the goal. Continuously improve product technology development, but also committed to the development of lead-free products at home and abroad, the pursuit of human health. Environmental Energy-saving development of the cause. Provide cost-effective valve.

2 Piece, Full Port, Male x Female Threaded Connection, 600 WOG Bronze Ball Valves
Two Piece Quarter-Turn Bronze Ball Valves
1.CONNECTION TYPE: FXF

2.COMMON BRASS MATERIAL Hpb57-3

3.IRON NUT

4.SURFACE TREATMENT:SAND-BLASTING AND NATURE COLOR IN BODY&THREAD

5.BRAND:AQUA-MIGEN OR OEM

6.THREAD:G BSP NTP

7.HANDLE:IRON HANDLE THROME PLATED ANY COLOR WITH PVC COVER

8.INSET BALL:BRASS

9 PTFE SEATED

10STEM:BRASS

11.FULL PORT

12.PN:16

13.PACKING:PTFE

14.BRASS GLAND NUT ,O-RING

15.long thread
